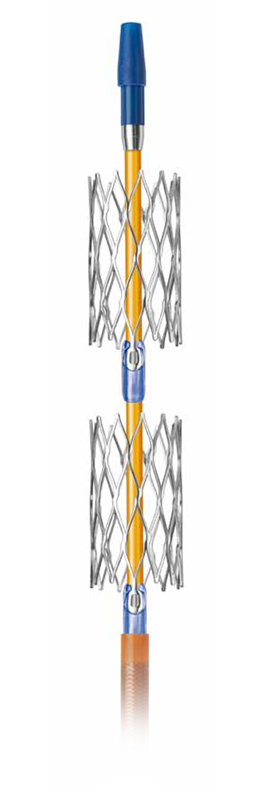

Multiple Stent Delivery System
Patented worldwide: The medicut multi-LOC Multiple Stent Delivery System, a spot-stenting system with 6 loaded stents with tried-and-tested and easy-to-operate one-handed handling technology.

Stent
- Short self-expanding nitinol stent (13 mm)
- Closed cell design
- Minimal shortening

Indication
- Indicated for primary or secondary stenting
- Vascular regions: iliaca, superficial (SFA) and popliteal artery (PA) (all segments)
- Artherosclerotic diseases of the peripheral arteries

Stent visibility
- One integrated laser-welded tantalum marker
at proximal end of each stent

Braided outer sheath
- Minimal force for stent release
- High kink resistant and flexible
- Excellent pushability for cross-over

Application device
- One-handed stent delivery system to control the stent position
- Simple and safe to use
- High flexible braided outer sheath
- Radiopaque platinum markers on the inner catheter
- Two different working lengths: 80 cm / 130 cm
- For use with .035 inch guide wire
Downloads
Application Device 6F / 80 cm
Nominal lenght mm | Stent Ø 5 mm | Stent Ø 6 mm | Stent Ø 7 mm | Stent Ø 8 mm |
---|---|---|---|---|
Order-No. | ||||
103 | 3680-5100 | 3680-6100 | 3680-7100 | 3680-8100 |
Application Device 6F / 130 cm
Nominal lenght mm | Stent Ø 5 mm | Stent Ø 6 mm | Stent Ø 7 mm | Stent Ø 8 mm |
---|---|---|---|---|
Order-No. | ||||
103 | 3613-5100 | 3613-6100 | 3613-7100 | 3613-8100 |
